Overhead monorail system can turn on a tight radius, change elevations, adapt and easily be rerouted to clear floor aisles.
Typical Applications:
- Carton delivery system
- Industrial Paint lines

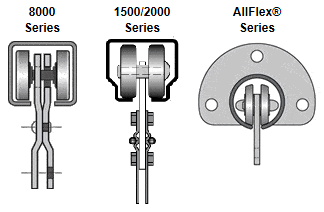

These systems utilize an enclosed steel track which guides the trolleys and protects them from direct contamination.
Applications include: finishing and processing systems, assembly operations, parts transfer, storage, over & under, delivery, etc.
A wide variety of part hooks, swivels, indexers, and custom designed carriers are available to handle your product.
| Model Number | Chain Pitch | Max Trolley Load | Max Chain Pull |
| 1500 | 1-1/2″ | 50 lb | 360 lb |
| 2000 | 2″ | 80 lb | 720 lb |
| 8000 | 8″ | 75 lb | 750 lb |
| All-Flex® | 6″ | 50 lb | 600 lb |
True workhorses of industry, I-Beam Track Overhead Conveyors in medium and heavy duty overhead conveyors offer capacities ranging from 200 to 1,200+ lbs.
Applications typically include:
- Large finishing and process systems
- Assembly operations
- Ttransfer, storage & delivery of heavy items
For conveying medium to heavy parts over short or long distances, these conveyors provide maximum performance and reliability.
| Model Number | Chain Pitch | Max Trolley Load | Max Chain Pull |
| 3000 | 3″ | 250 lb | 1800 lb |
| 4000 | 4″ | 500 lb | 4000 lb |
| 6000 | 6″ | 1200 lb | 6500 lb |
Please call 1-800-826-4554 or email info@ingallsconveyors.com to contact one of our engineering staff members about your specific overhead track conveyor requirements.
